3SK115 - Silicon N-Channel Transistor

Datasheet Summary

Features

  • . Superior Cross Modulation Pe rf ormance . Low Crss : C rss =0.03pF . Low Noise : NF=3.2dB.
  • S Q6 0.3 U M£LaJ 9.8 MI N. 3 y^O.75 "||. "0-6 5 CO' 2.

📥 Download Datasheet

Datasheet preview – 3SK115

Datasheet Details

Part number 3SK115
Manufacturer Toshiba
File Size 107.33 KB
Description Silicon N-Channel Transistor
Datasheet download datasheet 3SK115 Datasheet
Additional preview pages of the 3SK115 datasheet.

📁 Similar Datasheet

  • 3SK113 - GaAs N-Channel Dual Gate FET (Hitachi)
  • 3SK103 - Silicon N-Channel MOSFET (ETC)
  • 3SK122 - MOS Field Effect Transistor (NEC)
  • 3SK126 - N CHANNEL DUAL GATE MOS TYPE (TY TUNER/ VHF RF AMPLIFIER/ TV TUNER VHF MIXER APPLICATIONS) (Toshiba Semiconductor)
  • 3SK127 - N CHANNEL DUAL GATE MOS TYPE (TV TUNER/ UHF RF AMPLIFIER/ UHF MIXER APPLICATIONS) (Toshiba Semiconductor)
  • 3SK131 - MOS FIELD EFFECT TRANSISTOR (NEC)
  • 3SK134B - RF AMP. FOR UHF TV TUNER N-CHANNEL SILICON DUAL GATE MOS FIELD-EFFECT TRANSISTOR 4 PINS MINI MOLD (NEC)
  • 3SK135A - N-Channel MOSFET (NEC)
  • 3SK144 - Silicon N-Channel 4-pin MOS FET (Panasonic)
  • 3SK147 - GaAs N-Channel Dual-Gate MES FET (Sony)
Other Datasheets by Toshiba
  • 3SK114 - Silicon N-Channel Transistor
  • 3SK101 - Silicon N-Channel Transistor
  • 3SK102 - Silicon N-Channel Transistor
  • 3SK121 - Silicon N-Channel MOSFET
  • 3SK22 - Silicon N-Channel Transistor
  • 3SK28 - Silicon N-Channel Transistor
  • 3SK38A - Silicon N-Channel Transistor
  • 3SK73 - Silicon N-Channel Transistor

Full PDF Text Transcription

Click to expand full text

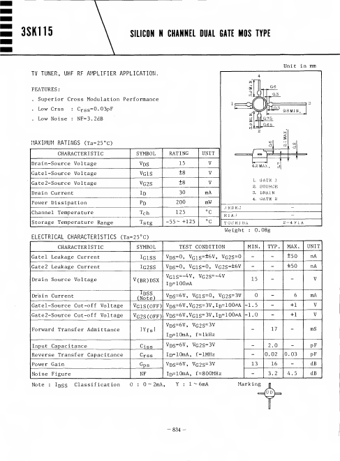

3SK115 SILICON N CHANNEL DUAL GATE MOS TYPE TV TUNER, UHF RF AMPLIFIER APP LICATION. Unit in mm 4 FEATURES . Superior Cross Modulation Pe rf ormance . Low Crss : C rss =0.03pF . Low Noise : NF=3.2dB •S Q6 0.3 U M£LaJ 9.8 MI N. 3 y^O.75 "||."0-6 5 CO' 2 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Drain-Source Voltage Gatel-Source Voltage Gate2-Source Voltage Drain Current Power Dissipation Channel Temperature Storage Temperature Range SYMBOL VDS vgis VG2S id Pd Teh T stg ELECTRICAL CHARACTERISTICS (Ta=25°C) CHARACTERISTIC SYMBOL Gatel Leakage Current IG1SS Gate2 Leakage Current IG2SS Drain Source Voltage V(BR)DSX RATING UNIT 15 V ±8 V ±8 V 30 mA 200 mW 125 °C -55- +125 °C S| c> J- 1 1 4 .2 MA> c5 1. QATK I 2. SOURCE 3. DRA I N 4. GATE 2 .
