50JR22 - Silicon N-Channel IGBT

Name: 50JR22
SKU: 50JR22-1304980

Toshiba

The 50JR22 by Toshiba is a Silicon N-Channel IGBT. Below is the official datasheet preview.

Datasheet Details

Part number	50JR22
Manufacturer	Toshiba
File Size	201.59 KB
Description	Silicon N-Channel IGBT
Datasheet	50JR22-Toshiba.pdf

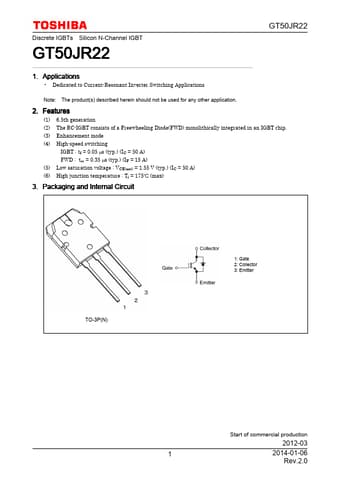

Additional preview pages of the 50JR22 datasheet.

(1) 6.5th generation (2) The RC-IGBT consists of a Freewheeling Diode(FWD) monolithically integrated in an IGBT chip. (3) Enhancement mode (4) High-speed switching IGBT : tf = 0.05 µs (typ. ) (IC = 50 A) FWD : trr = 0.35 µs (typ. ) (IF = 15 A) (5) Low saturation voltage : VCE(sat) = 1.55 V (typ. ) (IC = 50 A) (6) High junction temperature : Tj = 175 (max) 3. Packaging and Internal Circuit TO-3P(N) 1: Gate 2: Collector 3: Emitter Start of commercial production 2012-03 1 2014-01-06 Rev.2.0 GT50J.
