88CS38 CMOS 8-Bit Microcontroller

TMP88CS38/CM38A/CP38A CMOS 8-Bit Microcontroller TMP88CS38NG/FG, TMP88CM38ANG/F, TMP88CP38ANG/F The TMP88CS38/CM38A/CP38A is the high speed and high performance 8-bit single chip microcomputers. This MCU contain CPU core, ROM, RAM, input/output ports, four multi-function timer/counters, serial bus interface, on-screen display, PWM output, 8-bit AD converter, and remote control signal preprocessor on chip. Product No. TMP88CS38NG/FG TMP88CM38ANG/F TMP88CP38ANG/F ROM 64 K × 8 bits 32 K × 8 bits.

88CS38 Features

* 8-bit single chip microcomputer TLCS-870/X series

* Instruction execution time: 0.25 μs (at 16 MHz)

* 842 basic instructions

* Multiplication and division (8 bits × 8 bits, 16 bits × 8 bits, 16 bits/8 bits)

* Bit manipulations (Set/clear/complement/move/test

88CS38 Datasheet (1.91 MB)

Preview of 88CS38 PDF

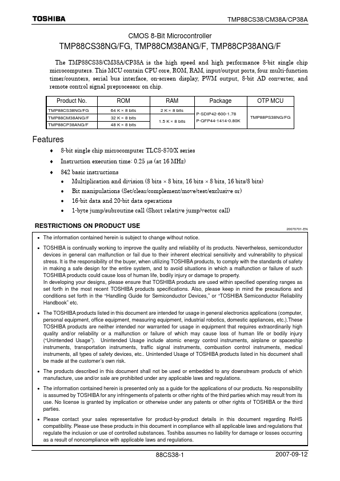

88CS38 Datasheet Preview Page 2 88CS38 Datasheet Preview Page 3

Datasheet Details

Part number:

88CS38

Manufacturer:

Toshiba ↗

File Size:

1.91 MB

Description:

Cmos 8-bit microcontroller.
