A1296 - 2SA1296

Toshiba

Datasheet Details

Part number	A1296
Manufacturer	Toshiba
File Size	200.86 KB
Description	2SA1296
Datasheet	A1296 Datasheet
Additional preview pages of the A1296 datasheet.

📁 Similar Datasheet

A1290 - 2SA1290 (Sanyo)
A1291 - 2SA1291 (Sanyo)
A1292 - 2SA1292 (Sanyo)
A1294 - 2SA1294 (Sanken electric)
A12 - 10 TO 1000 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
A1201 - Continuous-Time Bipolar Switch (Allegro MicroSystems)
A1202 - Continuous-Time Bipolar Switch (Allegro)
A1203 - Continuous-Time Bipolar Switch (Allegro)
A1203S-1W - DC-DC Power Module (K-CUT)
A1204 - Continuous-Time Bipolar Switch (Allegro)

Other Datasheets by Toshiba

A1213 - 2SA1213
A1264 - Silicon PNP Transistor
A1265 - 2SA1265

Full PDF Text Transcription

Click to expand full text

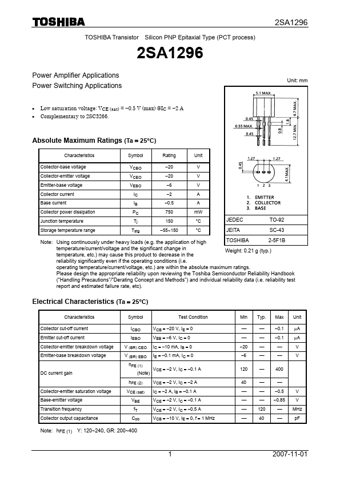

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1296 Power Amplifier Applications Power Switching Applications 2SA1296 Unit: mm • Low saturation voltage: VCE (sat) = −0.5 V (max) @IC = −2 A • Complementary to 2SC3266. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO −20 V Collector-emitter voltage VCEO −20 V Emitter-base voltage VEBO −6 V Collector current IC −2 A Base current IB −0.5 A Collector power dissipation Junction temperature Storage temperature range PC 750 mW Tj 150 °C Tstg −55~150 °C JEDEC JEITA TO-92 SC-43 Note: Using continuously under heavy loads (e.g. the application of high TOSHIBA 2-5F1B temperature/current/voltage and the significant change in temperature, etc.
