C2510 Datasheet - Toshiba

C2510 2SC2510

TOSHIBA TRANSISTOR SILICON NPN EPITAXIAL PLANAR TYPE 2SC2510 2SC2510 2~30MHz SSB LINEAR POWER AMPLIFIER APPLICATIONS (28V SUPPLY VOLTAGE USE) l Specified 28V, 28MHz Characteristics l Output Power : Po = 150WPEP (Min.) l Power Gain : Gp = 12.2dB (Min.) l Collector Efficiency : ηC = 35% (Min.) l Intermodulation Distortion: IMD = 30dB (Max.) Unit in mm MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Collector-Emitter Voltage Emitter-.

C2510-Toshiba.pdf

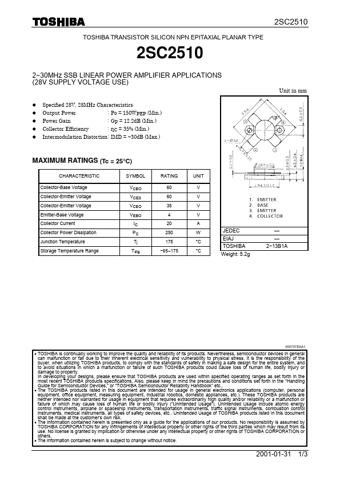

Preview of C2510 PDF
C2510 Datasheet Preview Page 2 C2510 Datasheet Preview Page 3

Datasheet Details

Part number:

C2510

Manufacturer:

Toshiba ↗

File Size:

109.29 KB

Description:

2sc2510.
