C2644 Datasheet - Toshiba

C2644 2SC2644

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC2644 2SC2644 VHF~UHF Band Wideband Amplifier Applications Unit: mm High gain Low IMD fT = 4 GHz (typ.) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Emitter current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 25 12 3.0 120 40 0.5 125 -55~125 Unit V V V m.

C2644 Datasheet (122.14 KB)

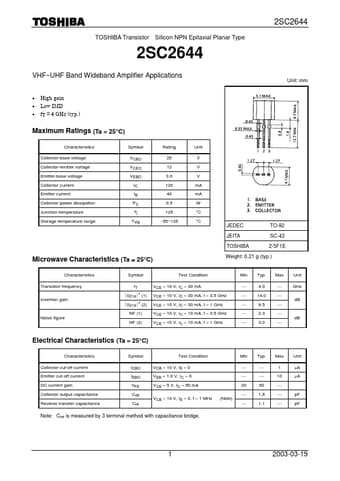

Preview of C2644 PDF
C2644 Datasheet Preview Page 2 C2644 Datasheet Preview Page 3

Datasheet Details

Part number:

C2644

Manufacturer:

Toshiba ↗

File Size:

122.14 KB

Description:

2sc2644.
