C3124 2SC3124

C3124 Description

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC3124 TV Tuner, VHF Oscillator Applications Maximum Ratings (Ta = 25°C) Characteristics Colle.

C3124 Applications

* Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 30 15 3 50 25 150 125 -55~125

📥 Download Datasheet

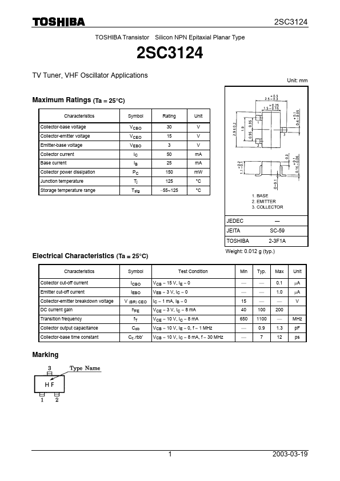

Preview of C3124 PDF
datasheet Preview Page 2 datasheet Preview Page 3
