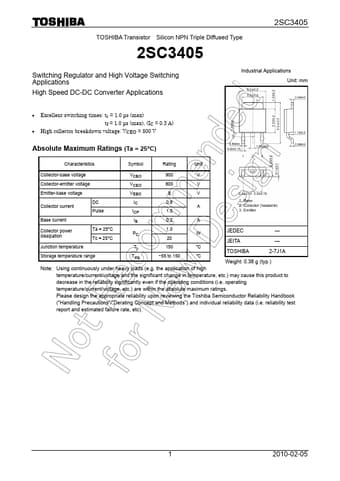

TOSHIBA Transistor Silicon NPN Triple Diffused Type
2SC3405
2SC3405
Switching Regulator and High Voltage Switching Applications High Speed DC-DC Converter Applications
Industrial Applications Unit: mm
• Excellent switching times: tr = 1.0 μs (max) tf = 1.0 μs (max), (IC = 0.3 A)
• High collector breakdown voltage: VCEO = 800 V
Absolute Maximum Ratings (Ta = 25°C)
Characteristics
Symbol
Rating
Unit
Collector-base voltage
VCBO 900 V
Collector-emitter voltage
VCEO 800 V
Emitter-base voltage
VEBO 8 V
Collector current
DC Pulse
IC
0.8 A
ICP 1.5
Base current
IB 0.2 A
Collector power dissipation
Ta = 25°C Tc = 25°C
PC
1.0 W
20
JEDEC JEITA
― ―
Junction temperature Storage temperature range
Tj 150 °C
Tstg
−55 to 150
°C
TOSHIBA
2-7J1A
Weight: 0.36 g (typ.
