LT121DEVKP00 - TFT LCD

Datasheet Summary

Features

  • (1) 12.1”XGA(1280x800 pixels) display size for notebook PC (2) LED Backlight with LED controller IC (3) Anti - Glare Surface (4) Bezel less structure.

📥 Download Datasheet

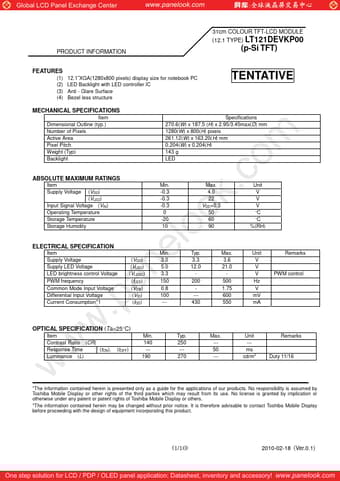

Datasheet preview – LT121DEVKP00

Datasheet Details

Part number LT121DEVKP00
Manufacturer Toshiba
File Size 369.13 KB
Description TFT LCD
Datasheet download datasheet LT121DEVKP00 Datasheet
Additional preview pages of the LT121DEVKP00 datasheet.

📁 Similar Datasheet

  • LT1210 - 1.1A/ 35MHz Current Feedback Amplifier (Linear Technology)
  • LT1210 - SMD Wire Wound Ferrite Chip Inductors (Chilisin Electronics)
  • LT1210 - 35MHz Current Feedback Amplifier (Analog Devices)
  • LT1210X - 35MHz Current Feedback Amplifier (Analog Devices)
  • LT1211 - 14MHz/ 7V/us/ Single Supply Dual and Quad Precision Op Amps (Linear Technology)
  • LT1211I - 14MHz/ 7V/us/ Single Supply Dual and Quad Precision Op Amps (Linear Technology)
  • LT1212 - 14MHz/ 7V/us/ Single Supply Dual and Quad Precision Op Amps (Linear Technology)
  • LT1213 - 28MHz/ 12V/us/ Single Supply Dual and Quad Precision Op Amps (Linear Technology)
  • LT1214 - 28MHz/ 12V/us/ Single Supply Dual and Quad Precision Op Amps (Linear Technology)
  • LT1215 - 23MHz/ 50V/us/ Single Supply Dual and Quad Precision Op Amps (Linear Technology)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text
Global LCD Panel Exchange Center www.panelook.com PRODUCT INFORMATION 31cm COLOUR TFT-LCD MODULE (12.1 TYPE) LT121DEVKP00 (p-Si TFT) FEATURES (1) 12.1”XGA(1280x800 pixels) display size for notebook PC (2) LED Backlight with LED controller IC (3) Anti - Glare Surface (4) Bezel less structure TENTATIVE MECHANICAL SPECIFICATIONS Item Dimensional Outline (typ.) Number of Pixels Active Area Pixel Pitch Weight (Typ) Backlight Specifications 270.6(W) x 187.5 (H) x 2.95/3.45max(D) mm 1280(W) x 800(H) pixels 261.12(W) x 163.20(H) mm 0.204(W) x 0.204(H) 143 g LED ABSOLUTE MAXIMUM RATINGS Item Supply Voltage (VDD) (VLED) Input Signal Voltage (VIN) Operating Temperature Storage Temperature Storage Humidity Min. Max. Unit -0.3 4.0 V -0.3 22 V -0.3 VDD+0.
