LTM020A52A - COLOUR TFT-LCD

Datasheet Summary

Features

  • (1) a-Si TFT-LCD for Mobile Phone (2) QVGA 240(H) x 320(V) pixels (3) VE-Transmissive type Mode (4) 262,144 colors (18 bit color depth) (5) CPU memory bus I/F [9 or 16 bit] (i80) (6) Cell + FPC + Backlight (7) Driver IC --- uPD161704 (by NEC).

📥 Download Datasheet

Datasheet preview – LTM020A52A

Datasheet Details

Part number LTM020A52A
Manufacturer Toshiba
File Size 267.56 KB
Description COLOUR TFT-LCD
Datasheet download datasheet LTM020A52A Datasheet
Additional preview pages of the LTM020A52A datasheet.

📁 Similar Datasheet

  • LTM06C310 - 16cm COLOUR TFT-LCD MODULE 6.3 TYPE (Toshiba Semiconductor)
  • LTM07C383 - Display (Solar)
  • LTM08C343S - 21cm COLOUR TFT-LCD MODULE (Toshiba Semiconductor)
  • LTM08C351 - 21cm COLOR TFT-LCD MODULE 8.4 TYPE (Toshiba Semiconductor)
  • LTM-8328GKR-04 - SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTM-8328PKR-04 - SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTM-8522 - (LTM-8522 - LTM-8530) SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTM-8522E - LED Display (LITEON)
  • LTM-8522G - SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTM-8522HR - SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

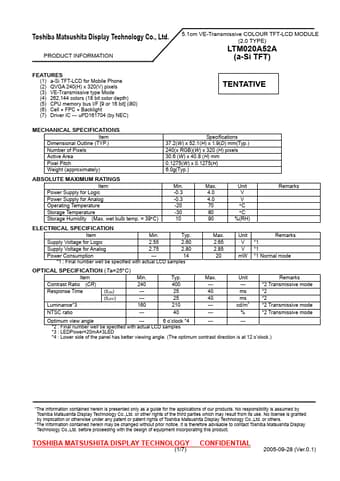

Toshiba Matsushita Display Technology Co., Ltd. PRODUCT INFORMATION 5.1cm VE-Transmissive COLOUR TFT-LCD MODULE (2.0 TYPE) LTM020A52A (a-Si TFT) FEATURES (1) a-Si TFT-LCD for Mobile Phone (2) QVGA 240(H) x 320(V) pixels (3) VE-Transmissive type Mode (4) 262,144 colors (18 bit color depth) (5) CPU memory bus I/F [9 or 16 bit] (i80) (6) Cell + FPC + Backlight (7) Driver IC --- uPD161704 (by NEC) TENTATIVE MECHANICAL SPECIFICATIONS Item Dimensional Outline (TYP.) Number of Pixels Active Area Pixel Pitch Weight (approximately) Specifications 37.2(W) x 52.1(H) x 1.9(D) mm(Typ.) 240(x RGB)(W) x 320 (H) pixels 30.6 (W) x 40.8 (H) mm 0.1275(W) x 0.1275(H) 6.0g(Typ.
