LTM020A784 - COLOUR TFT-LCD

Datasheet Summary

Features

  • (1) a-Si TFT-LCD for Cellular Phone (2) 120(H) x 160(V) pixels (3) Transflective Mode (4) 65K colors (5) CPU memory bus I/F [16 bit].

📥 Download Datasheet

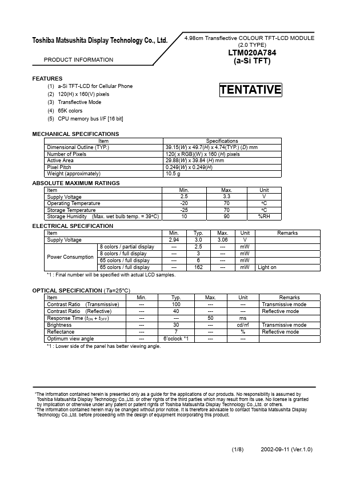

Datasheet preview – LTM020A784

Datasheet Details

Part number LTM020A784
Manufacturer Toshiba
File Size 191.95 KB
Description COLOUR TFT-LCD
Datasheet download datasheet LTM020A784 Datasheet
Additional preview pages of the LTM020A784 datasheet.

📁 Similar Datasheet

  • LTM06C310 - 16cm COLOUR TFT-LCD MODULE 6.3 TYPE (Toshiba Semiconductor)
  • LTM07C383 - Display (Solar)
  • LTM08C343S - 21cm COLOUR TFT-LCD MODULE (Toshiba Semiconductor)
  • LTM08C351 - 21cm COLOR TFT-LCD MODULE 8.4 TYPE (Toshiba Semiconductor)
  • LTM-8328GKR-04 - SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTM-8328PKR-04 - SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTM-8522 - (LTM-8522 - LTM-8530) SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTM-8522E - LED Display (LITEON)
  • LTM-8522G - SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTM-8522HR - SEVEN-SEGMENT NUMERIC LED DISPLAY (LITE-ON Electronics)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text
Toshiba Matsushita Display Technology Co., Ltd. PRODUCT INFORMATION 4.98cm Transflective COLOUR TFT-LCD MODULE (2.0 TYPE) LTM020A784 (a-Si TFT) FEATURES (1) a-Si TFT-LCD for Cellular Phone (2) 120(H) x 160(V) pixels (3) Transflective Mode (4) 65K colors (5) CPU memory bus I/F [16 bit] TENTATIVE MECHANICAL SPECIFICATIONS Item Dimensional Outline (TYP.) Number of Pixels Active Area Pixel Pitch Weight (approximately) Specifications 39.15(W) x 49.7(H) x 4.74(TYP.) (D) mm 120( x RGB)(W) x 160 (H) pixels 29.88(W) x 39.84 (H) mm 0.249(W) x 0.249(H) 10.5 g ABSOLUTE MAXIMUM RATINGS Item Supply Voltage Operating Temperature Storage Temperature Storage Humidity (Max. wet bulb temp. = 39°C) Min. 2.5 -20 -25 10 Max. 3.3 70 70 90 Unit V °C °C %RH ELECTRICAL SPECIFICATION Item Min. Typ. Max.
