LTM022A120 - 262K TFT LCD

LTM022A120 Description

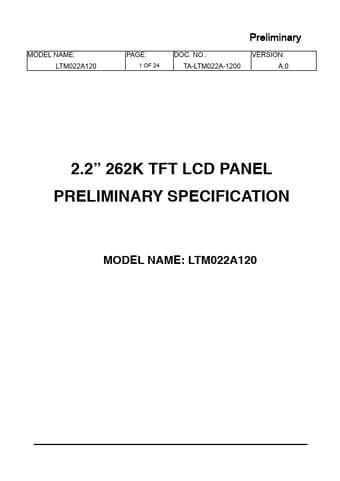

MODEL NAME: LTM022A120 PAGE: 1 OF 24 3UHOLPLQDU DOC.NO.: VERSION: TA-LTM022A-1200 A.0 2.2” 262K TFT LCD PANEL PRELIMINARY SPECIFICATION MODEL.
4 2 ELECTRICAL CHARACTERISTICS 5 3 OPTICAL CHARACTERISTICS 6 4 DC CHARACTERISTICS 9 5 BLOCK DIAGRAM 11 6 INTERFACE PIN CONNECTION 13 7 OUT.

LTM022A120 Applications

* : Transmissive color active matrix LCD panel TN (Twisted Nematic) mode : Gate IC: Himax 8609A; Source IC: Himax 8301A Low power consumption : 80-systems 18-bit/9-bit bus Serial data transfer bus : 95,040 bytes max. : 262,144 colors : 39.8500 (W) ×53.9.000 (H) ×1.4 (D) mm : 34.848 (W) ×43.560 (H) mm
