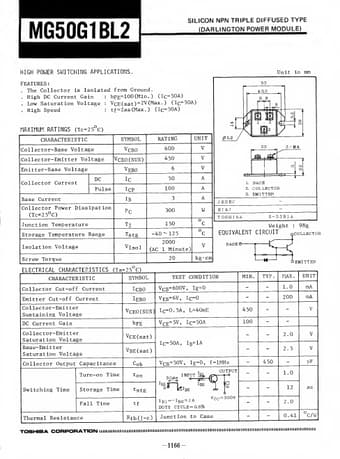

MG50G1BL2
FEATURES
. The Collector is Isolated from Ground.
. High DC Current Gain : h FE=100(Min. ) (Ic=50A)
. Low Saturation Voltage : Vc E(sat)=2V(Max. ) (Ic=50A)
. High Speed
: tf=2/- s(Max.) (Ic=50A)
Unit in mm
MAXIMUM RATINGS (Tc=25°C)
CHARACTERISTIC
SYMBOL
RATING
UNIT
Collector-Base Voltage
Vc BO 600 V
Collector-Emitter Voltage VCEO(SUS)
V t ^P I
- f- 3
Emitter-Base Voltage
Vebo
6V
DC ic
50 A
Pulse
100 A
Base Current
IB 3 A cjx
1. BASE 2. COLLECTOR 3. EMITTER
Collector Power Dissipation (Tc=25°C)
Junction Temperature Storage Temperature Range
Isolation Voltage
PC 300 W
Tj T stg
Visol
-40-125
2000 (AC 1 Minute)
°C...
