SM12J48 Datasheet - Toshiba

SM12J48 BI-DIRECTIONAL TRIODE THYRISTOR

SM12(G,J)48,USM12(G,J)48,SM12(G,J)48A,USM12(G,J)48A TOSHIBA BI-DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE SM12G48,USM12G48,SM12J48,USM12J48 SM12G48A,USM12G48A,SM12J48A,USM12J48A AC POWER CONTROL APPLICATIONS l Repetitive Peak Off-State Voltage : VDRM=400, 600V l R.M.S. On-State Current : IT (RMS) =12A l Gate Trigger Current : IGT=30mA Max. : IGT=20mA Max. (“A”Type) SM12G48, SM12J48, SM12G48A, SM12J48A Unit in mm USM12G48, USM12J48, USM12G48A, USM12J48A JEDEC JEITA TOSHIBA MARKING .

SM12J48 Datasheet (196.90 KB)

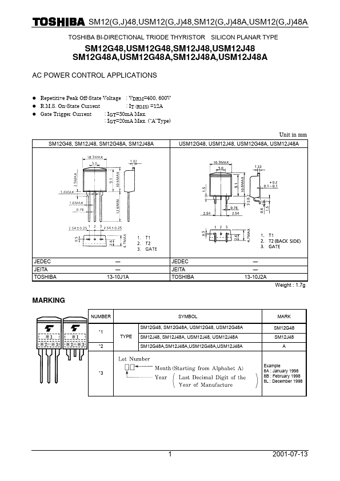

Preview of SM12J48 PDF
SM12J48 Datasheet Preview Page 2 SM12J48 Datasheet Preview Page 3

Datasheet Details

Part number:

SM12J48

Manufacturer:

Toshiba ↗

File Size:

196.90 KB

Description:

Bi-directional triode thyristor.
