TA1241AN - DEFLECTION PROCESSOR IC FOR TVs

Product Overview

Toshiba

Part number	TA1241AN
Manufacturer	Toshiba
File Size	374.18 KB
Description	DEFLECTION PROCESSOR IC FOR TVs
Datasheet	TA1241AN Datasheet

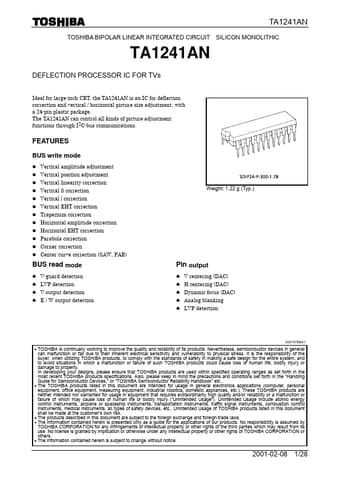

Additional preview pages of the TA1241AN datasheet.

BUS write mode l Vertical amplitude adjustment l Vertical position adjustment l Vertical linearity correction l Vertical S correction l Vertical ∫ correction l Vertical EHT correction l Trapezium correction l Horizontal amplitude correction l Horizontal EHT correction l Parabola correction l Corner correction l Center curve correction (SAW, PAR) BUS read mode l V-guard detection l LVP detection l V output detection l E / W output detection Weight: 1.22 g (Typ. ) Pin output l V centering (DAC) l.
