TA2050F, TA2050 Datasheet - Toshiba

TA2050F GROUND ISOLATOR IC

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA2050S,TA2050F TA2050S/F Ground Isolator IC TA2050S/F are ground isolator IC designed for car audio equipments. These IC contains dual channel differential amplifier with built-in feedback resistors. The effect of ground noise due to difference grounding points on car chassis between head unit and other component unit can be reduced by high common mode rejection performance. Non-inverting and inverting application are available. Fe.

TA2050F Features

* Dual channel differential amplifier

* Built-in feedback Resistor

* High common mode rejection ratio : CMRR = 60dB (typ.) (VCC = 8 V, f = 1 kHz, VCM = 1 Vrms)

* Low noise : VNO = 1.7 µVrms (typ.) (VCC = 8 V, Rg = 620 Ω, Filter = 20 Hz~20 kHz)

* Low distortion : THD = 0.002% (typ

TA2050_Toshiba.pdf

This datasheet PDF includes multiple part numbers: TA2050F, TA2050. Please refer to the document for exact specifications by model.

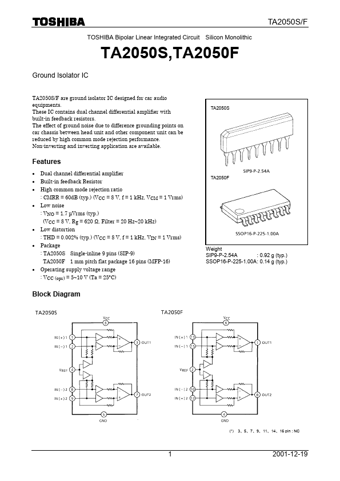

TA2050F Datasheet Preview Page 2 TA2050F Datasheet Preview Page 3

Datasheet Details

Part number:

TA2050F, TA2050

Manufacturer:

Toshiba ↗

File Size:

343.06 KB

Description:

Ground isolator ic.

Note:

This datasheet PDF includes multiple part numbers: TA2050F, TA2050.
Please refer to the document for exact specifications by model.
