TA2058F

POWER DRIVER IC FOR CD PLAYER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Toshiba America Electronic Components TA2058F IC,MOTOR CONTROLLER,BIPOLAR,SOP,30PIN Quest Components 1966 1819 units
$1.58

TA2058F Datasheet (302.53 KB)

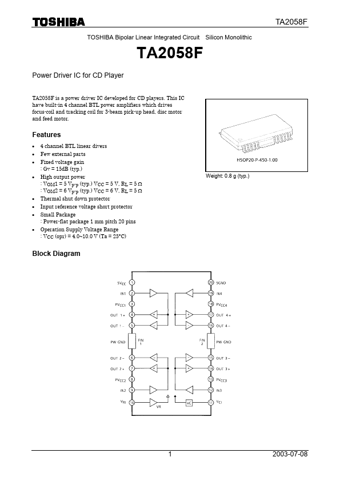

Preview of TA2058F PDF Datasheet

Datasheet Details

Part number:

TA2058F

Manufacturer:

Toshiba ↗

File Size:

302.53 KB

Description:

Power driver ic for cd player

TA2058F Features

* 4 channel BTL linear divers

* Few external parts

* Fixed voltage gain : Gv = 15dB (typ.)

* High output power : VOM1 = 5 Vp-p (typ.) VCC = 5 V, RL = 5 Ω : VOM2 = 6 Vp-p (typ.) VCC = 6 V, RL = 5 Ω

* Thermal shut down protector

* Input reference voltage
