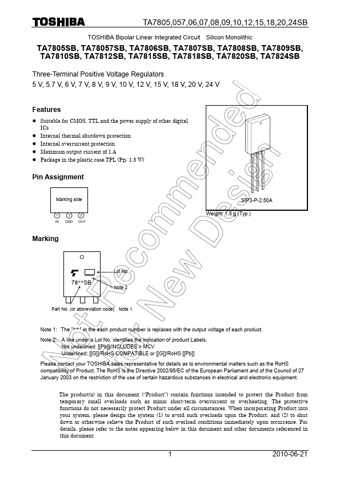

TA78057SB, TA7805SB - Three-Terminal Positive Voltage Regulator

Toshiba

Datasheet Details

Part number	TA78057SB, TA7805SB
Manufacturer	Toshiba ↗
File Size	503.22 KB
Description	Three-Terminal Positive Voltage Regulator
Datasheet	TA7805SB-Toshiba.pdf
Note	This datasheet PDF includes multiple part numbers: TA78057SB, TA7805SB. Please refer to the document for exact specifications by model.

z Suitable for CMOS, TTL and the power supply of other digital ICs z Internal thermal shutdown protection z Internal overcurrent protection z Maximum output current of 1 A z Package in the plastic case TPL (PD: 1.8 W) Pin Assignment Marking side 1 3 2 IN GND OUT Marking SIP3-P-2.50A Weight: 1.5 g (Typ. ) 78.
SB Lot No. Note 2 Part No. (or abbreviation code) Note 1 Note 1: The “.
” in the each product number is replaces with the output voltage of each product. Note 2:.
