TA8184F DUAL CHANNEL VOLTAGE/TONE CONTROL IC

on tone control frequency response during loudness.) Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Power supply voltage Power dissipation Operating temperature Storage temperature TA8184P TA8184F TA8184P TA8184F VCC PD (Note 1) Topr Tstg 15 12.5 1200 750 (Note 2) *.

TA8184F Features

* Dual channel

* Wide volume control range : Maximum attenuation ATT = 100dB (typ.) (Vol. → Min, VIN = 1 Vrms, BW = 400 Hz~30 kHz)

* Wide tone control range : Bass VB = +12.5~

* 12.5dB (typ.), (f = 100 Hz) : Treble VT = +12.5~

* 12.5dB (typ.), (f = 10 kHz)

* Built in loud

TA8184_Toshiba.pdf

This datasheet PDF includes multiple part numbers: TA8184F, TA8184. Please refer to the document for exact specifications by model.

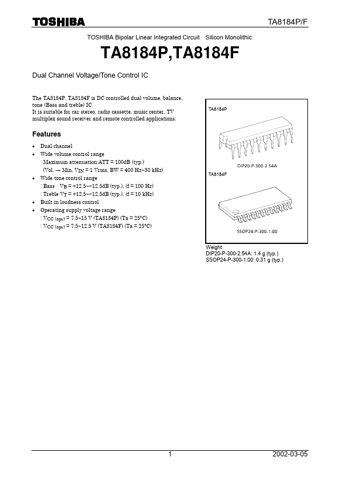

TA8184F Datasheet Preview Page 2 TA8184F Datasheet Preview Page 3

Datasheet Details

Part number:

TA8184F, TA8184

Manufacturer:

Toshiba ↗

File Size:

357.35 KB

Description:

Dual channel voltage/tone control ic.

Note:

This datasheet PDF includes multiple part numbers: TA8184F, TA8184.
Please refer to the document for exact specifications by model.
