TA8184P, TA8184 - DUAL CHANNEL VOLTAGE/TONE CONTROL IC

TA8184P Description

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8184P,TA8184F Dual Channel Voltage/Tone Control IC TA8184P/F The TA8184P, TA8184F is .
on tone control frequency response during loudness.

TA8184P Features

* Dual channel
* Wide volume control range : Maximum attenuation ATT = 100dB (typ. ) (Vol. → Min, VIN = 1 Vrms, BW = 400 Hz~30 kHz)
* Wide tone control range : Bass VB = +12.5~
* 12.5dB (typ. ), (f = 100 Hz) : Treble VT = +12.5~
* 12.5dB (typ. ), (f = 10 kHz)
* Built in loud

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TA8184P, TA8184. Please refer to the document for exact specifications by model.

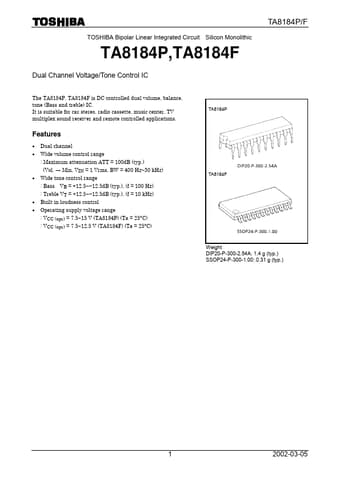

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA8184P, TA8184
Manufacturer
Toshiba ↗
File Size
357.35 KB
Datasheet
TA8184_Toshiba.pdf
Description
DUAL CHANNEL VOLTAGE/TONE CONTROL IC
Note
This datasheet PDF includes multiple part numbers: TA8184P, TA8184.
Please refer to the document for exact specifications by model.
