TA8464K DUAL POWER OPERATIONAL AMPLIFIER

TA8464K Description

TA8464K TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA8464K DUAL POWER OPERATIONAL AMPLIFIER The TA8464K is a dual power operational.
AMP. ) AMP. side volt.

TA8464K Features

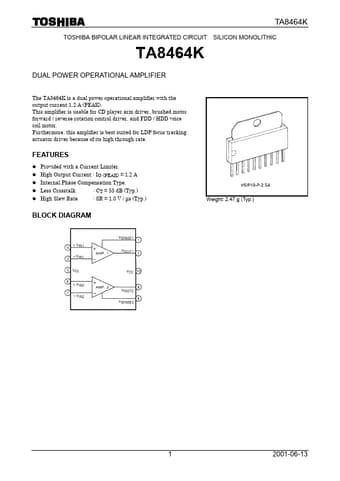

* l Provided with a Current Limiter. l High Output Current : IO (PEAK) = 1.2 A l Internal Phase Compensation Type. l Less Crosstalk : CT = 55 dB (Typ. ) l High Slew Rate : SR = 1.0 V / µs (Typ. ) BLOCK DIAGRAM Weight: 2.47 g (Typ. ) 1 2001-06-13 PIN FUNCTION PIN No. 1 2 3 4 5 6 7 8 9 10 SYMB

TA8464K Applications

* above 80 kHz, change a capacitor to one having a value of about 0.33 mF as a compensating circuit. Further, no resistor is needed in this case. Note 3: Utmost care is necessary in the design of the output line, VCC and GND line since IC may be destroyed due to short
* circuit between outputs
