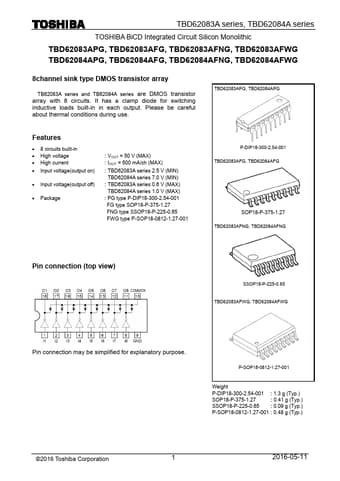

TBD62083AFG, TBD62083APG - 8channel sink type DMOS transistor array

Toshiba

Datasheet Details

Part number	TBD62083AFG, TBD62083APG
Manufacturer	Toshiba
File Size	454.70 KB
Description	8channel sink type DMOS transistor array
Datasheet	TBD62083APG-Toshiba.pdf
Note	This datasheet PDF includes multiple part numbers: TBD62083AFG, TBD62083APG. Please refer to the document for exact specifications by model.

8 circuits built-in.
High voltage.
High current.
Input voltage(output on).
Input voltage(output off).
Package : VOUT = 50 V (MAX) : IOUT = 500 mA/ch (MAX) : TBD62083A series 2.5 V (MIN) TBD62084A series 7.0 V (MIN) : TBD62083A series 0.6 V (MAX) TBD62084A series 1.0 V (MAX) : PG type P-DIP18-300-2.54-001 FG type SOP18-P-375-1.27 FNG type SSOP18-P-225-0.65 FWG type P-SOP18-0812-1.27-001 P-DIP18-300-2.54-001 TBD62083AFG, TBD62084AFG SOP18-P-.
