TC4040BF, TC4040BP Datasheet - Toshiba

TC4040BF 12 STAGE RIPPLE - CARRY BINARY COUNTER/DIVIDERS

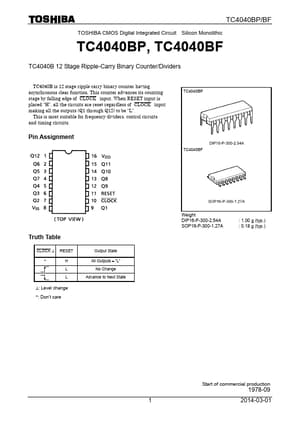

TC4040BP/BF TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC4040BP, TC4040BF TC4040B 12 Stage Ripple-Carry Binary Counter/Dividers TC4040B is 12 stage ripple carry binary counter having asynchronous clear function. This counter advances its counting stage by falling edge of CLOCK input. When RESET input is placed “H”, all the circuits are reset regardless of CLOCK input making all the outputs (Q1 through Q12) to be “L”. This is most suitable for frequency dividers, control circuits.

TC4040BP-Toshiba.pdf

This datasheet PDF includes multiple part numbers: TC4040BF, TC4040BP. Please refer to the document for exact specifications by model.
TC4040BF Datasheet Preview Page 2 TC4040BF Datasheet Preview Page 3

Datasheet Details

Part number:

TC4040BF, TC4040BP

Manufacturer:

Toshiba ↗

File Size:

206.00 KB

Description:

12 stage ripple - carry binary counter/dividers.

Note:

This datasheet PDF includes multiple part numbers: TC4040BF, TC4040BP.
Please refer to the document for exact specifications by model.
