TC83220-0029 Datasheet PDF - Toshiba TC83220-0029 CMOS Single-Chip LSI for FL (fluorescent) Calculator Specs

TC83220-0029 - TC83220-0029 CMOS Single-Chip LSI for FL (fluorescent) Calculator

Datasheet Summary

Description

> 781.2377

K 781.2377 781.2377 781.2377 781.2377 406.8882 781.23 1,500.

1,500.00 781.2377 781.23 781.237793159 0.

R 1.00000 1.92003 1.92003 1,470.44961824 0.

Features

Operational Features.
Print: 11/13 digits of data. (including decimal point 2 digit of operational symbol. ) 3 digits of commas.
Display: 10/12 digits of data. (including punctuation in each digit. ) 1 digit of floating minus sign, memory load, error symbol. 3 digits of commas.
Decimal output: Decimal setting lock key controls output format. Fixed decimal setting (“0”, “1”, “2”, “3”, “4”, “6”), full floating decimal, and ADD mode. Key input buffer: 8 stages Function: 4.

Datasheet Details

Part number	TC83220-0029
Manufacturer	Toshiba
File Size	227.83 KB
Description	TC83220-0029 CMOS Single-Chip LSI for FL (fluorescent) Calculator
Datasheet	TC83220-0029 Datasheet
Additional preview pages of the TC83220-0029 datasheet.

📁 Similar Datasheet

TC83220-0020 - Single-Chip CMOS LSI (Toshiba Semiconductor)

TC83220-0021 - Single-Chip CMOS LSI (Toshiba Semiconductor)

TC83220-0025 - Single-Chip CMOS LSI (Toshiba Semiconductor)

TC83220-0026 - Single-Chip CMOS LSI (Toshiba Semiconductor)

TC83220-0027 - Single-Chip CMOS LSI (Toshiba Semiconductor)

TC83220-0009 - Single-Chip CMOS LSI (Toshiba Semiconductor)

TC83220-0019 - Single-Chip CMOS LSI (Toshiba Semiconductor)

TC835 - PERSONAL COMPUTER DATA ACQUISITION A/D CONVERTER (TelCom Semiconductor)

TC835 - Personal Computer Data Acquisition A/D Converter (Microchip Technology)

TC8-13S242.5R - DC/DC CONVERTERS (TRUMPower)

Full PDF Text Transcription

Click to expand full text

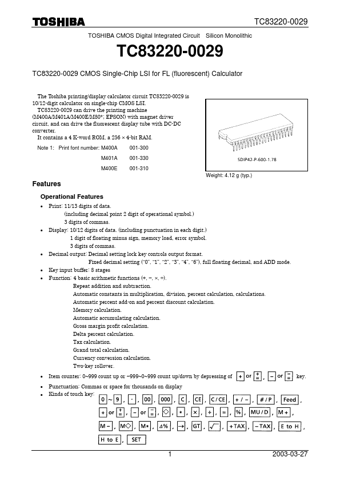

TC83220-0029 TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC83220-0029 TC83220-0029 CMOS Single-Chip LSI for FL (fluorescent) Calculator The Toshiba printing/display calculator circuit TC83220-0029 is 10/12-digit calculator on single-chip CMOS LSI. TC83220-0029 can drive the printing machine (M400A/M401A/M400E/M80*; EPSON) with magnet driver circuit, and can drive the fluorescent display tube with DC-DC converter. It contains a 4 K-word ROM, a 256 × 4-bit RAM. Note 1: Print font number: M400A M401A M400E 001-300 001-330 001-310 Weight: 4.12 g (typ.) Features Operational Features · Print: 11/13 digits of data. (including decimal point 2 digit of operational symbol.) 3 digits of commas. · Display: 10/12 digits of data. (including punctuation in each digit.
