TCR15AG285 Ultra High ripple rejection ratio Regulator

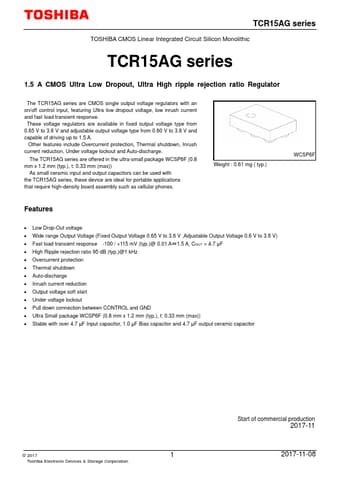

TCR15AG series TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic TCR15AG series 1.5 A CMOS Ultra Low Dropout, Ultra High ripple rejection ratio Regulator The TCR15AG series are CMOS single output voltage regulators with an on/off control input, featuring Ultra low dropout voltage, low inrush current and fast load transient response. These voltage regulators are available in fixed output voltage type from 0.65 V to 3.6 V and adjustable output voltage type from 0.60 V to 3.6 V and capabl.

TCR15AG285 Features

* include Overcurrent protection, Thermal shutdown, Inrush current reduction, Under voltage lockout and Auto-discharge. The TCR15AG series are offered in the ultra-small package WCSP6F (0.8 mm x 1.2 mm (typ.), t: 0.33 mm (max)) As small ceramic input and output capacitors can be used with the TCR15AG
