TD62081F - 8CH DARLINGTON SINK DRIVER

Product Overview

Toshiba

Part number	TD62081F
Manufacturer	Toshiba
File Size	237.43 KB
Description	8CH DARLINGTON SINK DRIVER
Datasheet	TD62081F Datasheet

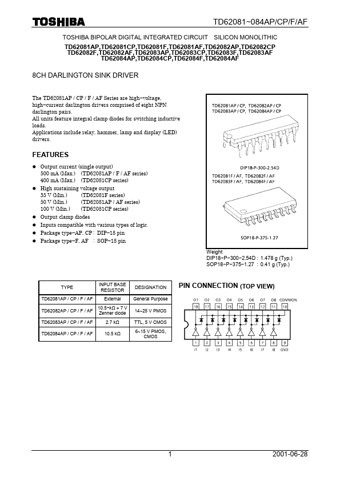

Additional preview pages of the TD62081F datasheet.

l Output current (single output) 500 mA (Max. ) (TD62081AP / F / AF series) 400 mA (Max. ) (TD62081CP series) l High sustaining voltage output 35 V (Min. ) (TD62081F series) 50 V (Min. ) (TD62081AP / AF series) 100 V (Min. ) (TD62081CP series) l Output clamp diodes l Inputs compatible with various types of logic. l Package type.
AP, CP : DIP.
18 pin l Package type.
F, AF : SOP.
18 pin Weight DIP18.
P.
300.
2.54D : 1.478 g (Typ. ) SOP18.
P.
