TD62083AFN Datasheet - Toshiba

TD62083AFN 8CH DARLINGTON SINK DRIVER

TD62083AFN Features

* Package Type : SSOP18 pin High Sustaining Voltage Output : 50 V (min) Output Current (Single Output) : 500 mA / ch (max) Output Clamp Diodes Inputs compatible with Various Types of Logic. TYPE INPUT BASE RESISTOR DESIGNATION TD62083AFN TD62084AFN 2.7 kΩ 10.5 kΩ TTL, 5

* V CMOS 6~15

TD62083AFN_ToshibaSemiconductor.pdf

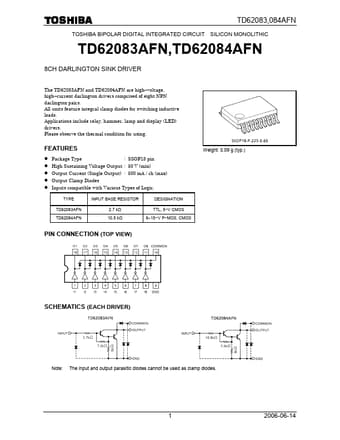

Preview of TD62083AFN PDF
TD62083AFN Datasheet Preview Page 2 TD62083AFN Datasheet Preview Page 3

Datasheet Details

Part number:

TD62083AFN

Manufacturer:

Toshiba ↗

File Size:

330.33 KB

Description:

8ch darlington sink driver.
