TD62304AFN, 7CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER

TD62304,305AFN TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC TD62304AFN,TD62305AFN 7CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER The TD.

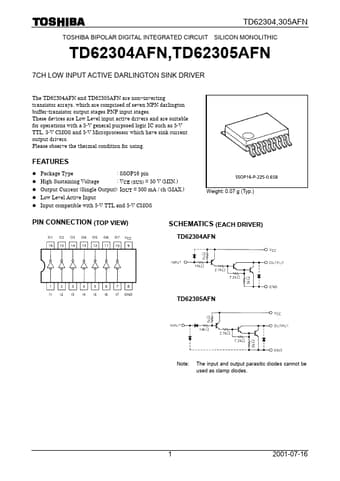

datasheet Preview Page 1 from Datasheet4u.com

TD62304AFN_ToshibaSemiconductor.pdf

TD62304AFN Datasheet Preview — Preview of TD62304AFN PDF

Datasheet Details

Part number:

TD62304AFN

Manufacturer:

Toshiba ↗

File Size:

193.97 KB

Description:

7CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER

Features

* l Package Type : SSOP16 pin l High Sustaining Voltage : VCE (SUS) = 50 V (MIN. ) l Output Current (Single Output): IOUT = 500 mA / ch (MAX. ) l Low Level Active Input l Input compatible with 5-V TTL and 5-V CMOS Weight: 0.07 g (Typ. ) PIN CONNECTION (TOP VIEW) SCHEMATICS (EACH DRIVER) TD62304

Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m
