TLP105 Datasheet - Toshiba

TLP105 Photocoupler

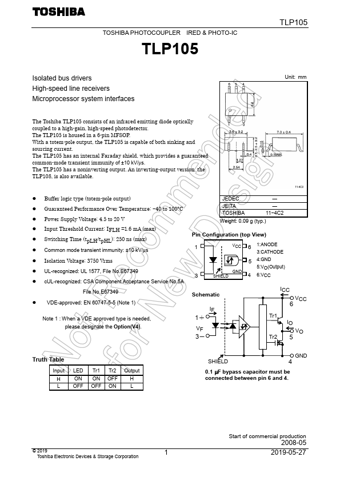

TOSHIBA PHOTOCOUPLER IRED & PHOTO-IC TLP105 TLP105 Isolated bus drivers High-speed line receivers Microprocessor system interfaces Unit: mm The Toshiba TLP105 consists of an infrared emitting diode optically coupled to a high-gain, high-speed photodetector. The TLP105 is housed in a 6-pin MFSOP. With a totem-pole output, the TLP105 is capable of both sinking and sourcing current. The TLP105 has an internal Faraday shield, which provides a guaranteed common-mode transient immunity of ±10 kV/μ.

TLP105 Datasheet (533.54 KB)

Preview of TLP105 PDF

Datasheet Details

Part number:

TLP105

Manufacturer:

Toshiba ↗

File Size:

533.54 KB

Description:

Photocoupler.
