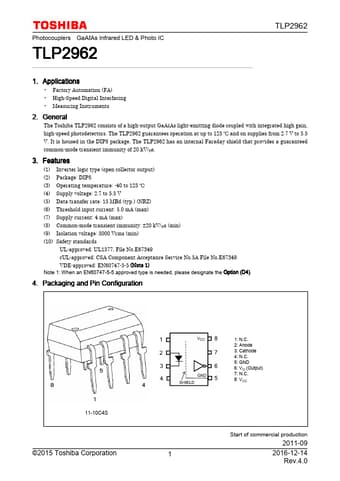

TLP2962, Photocoupler

Photocouplers GaAℓAs Infrared LED & Photo IC TLP2962 TLP2962 1.

Applications Factory Automation (FA) High-Speed Digital Interfacing Measuring Instruments 2.

General The Toshiba TLP2962 consists of a high-output GaAℓAs light-emitting diode coupled with integrated high gain, high-speed photodetectors.

The TLP2962 guarantees operation at up to 125  and on supplies from 2.7 V to 5.5 V.

It is housed in the DIP8 package.

The TLP2962 has an internal Faraday shield that

TLP2962 Features

* (1) Inverter logic type (open collector output) (2) Package: DIP8 (3) Operating temperature: -40 to 125  (4) Supply voltage: 2.7 to 5.5 V (5) Data transfer rate: 15 MBd (typ.) (NRZ) (6) Threshold input current: 5.0 mA (max) (7) Supply current: 4 mA (max) (8) Common-mode transient immunity: ±20 kV/µ
