TLP3119 - Photocoupler

Toshiba

The TLP3119 by Toshiba is a Photocoupler. Below is the official datasheet preview.

📥 Download Datasheet

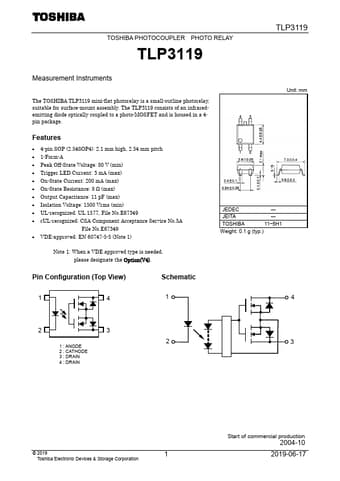

TLP3119 Photocoupler by Toshiba - Datasheet Preview — Official preview page of the TLP3119 Photocoupler datasheet (Toshiba).

Datasheet Details

Part number	TLP3119
Manufacturer	Toshiba
File Size	345.90 KB
Description	Photocoupler
Datasheet	TLP3119_Toshiba.pdf
Additional preview pages of the TLP3119 datasheet.

TLP3119 Product details

Features

4-pin SOP (2.54SOP4): 2.1 mm high, 2.54 mm pitch.
1-Form-A.
Peak Off-State Voltage: 80 V (min).
Trigger LED Current: 3 mA (max).
On-State Current: 200 mA (max).
On-State Resistance: 8 Ω (max).
Output Capacitance: 11 pF (max).
Isolation Voltage: 1500 Vrms (min).
UL-recognized: UL 1577, File No. E67349.
cUL-recognized: CSA Component Acceptance Service No.5A File No. E67349.
VDE-approved: EN 60747-5-5.
