Part number	TLP5702
Manufacturer	Toshiba ↗
File Size	1.31 MB
Description	Photocoupler
Datasheet	TLP5702-Toshiba.pdf

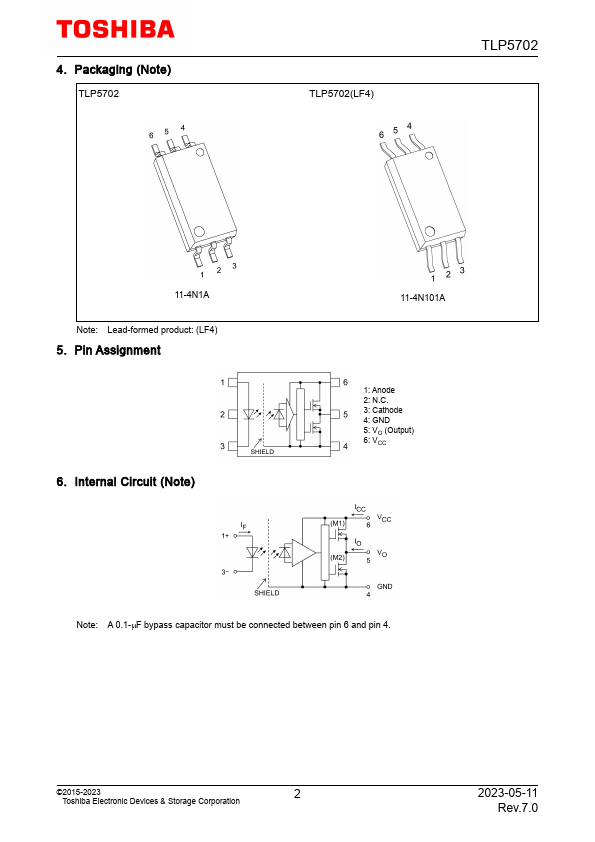

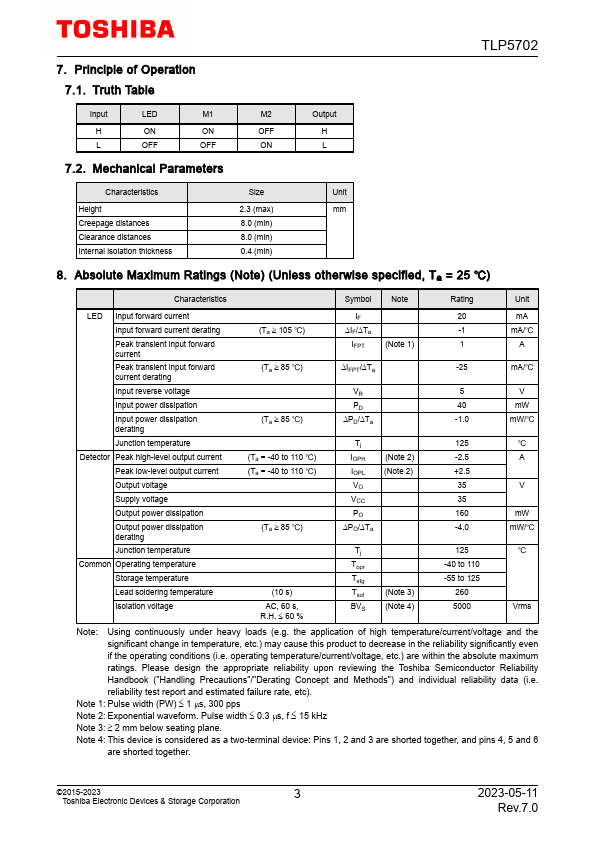

TLP5702 Product details

Features

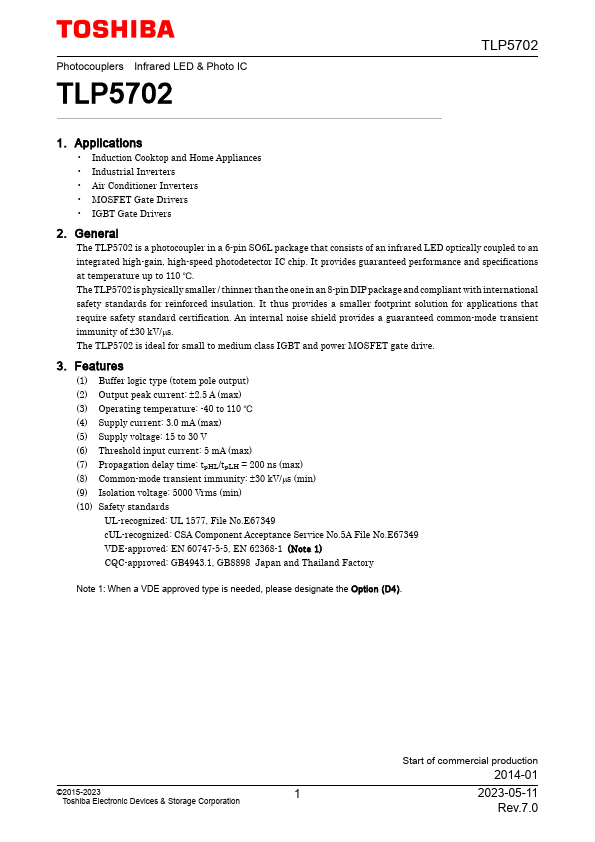

(1) Buffer logic type (totem pole output) (2) Output peak current: ±2.5 A (max) (3) Operating temperature: -40 to 110.
(4) Supply current: 3.0 mA (max) (5) Supply voltage: 15 to 30 V (6) Threshold input current: 5 mA (max) (7) Propagation delay time: tpHL/tpLH = 200 ns (max) (8) Common-mode transient immunity: ±30 kV/µs (min) (9) Isolation voltage: 5000 Vrms (min) (10) Safety standards UL-recognized: UL 1577, File No. E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No. E673.
