TMP47P101, TMP47P201 - CMOS 4-Bit Microcontroller

Toshiba

📥 Download Datasheet

TMP47P101 Datasheet Preview — This datasheet PDF includes multiple part numbers: TMP47P101, TMP47P201. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TMP47P101, TMP47P201
Manufacturer	Toshiba
File Size	1.07 MB
Description	CMOS 4-Bit Microcontroller
Datasheet	TMP47P201_Toshiba.pdf
Note	This datasheet PDF includes multiple part numbers: TMP47P101, TMP47P201. Please refer to the document for exact specifications by model.

TMP47P101 Product details

Description

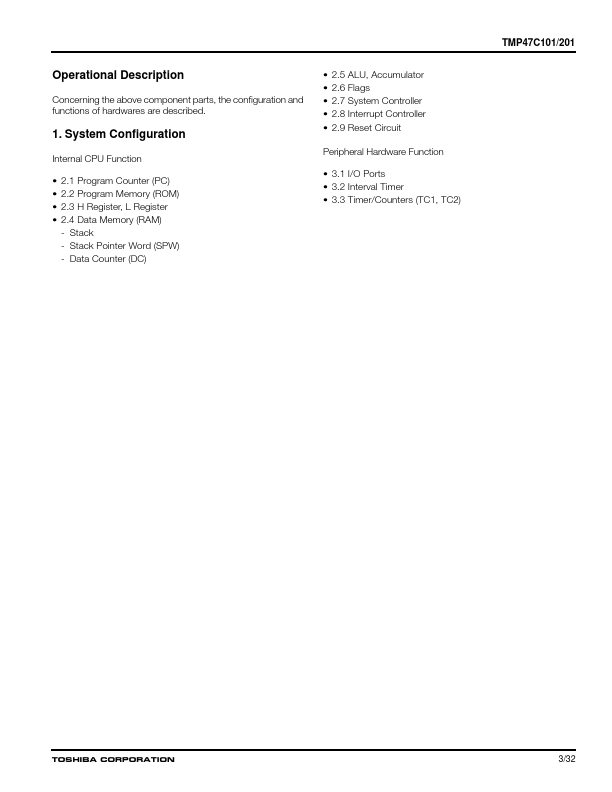

Concerning the above component parts, the conﬁguration and functions of hardwares are described. 2.1 Program Counter (PC) 2.2 Program Memory (ROM) 2.3 H Register, L Register 2.4 Data Memory (RAM) - Stack - Stack Pointer Word (SPW) - Data Counter (DC) 2.5 ALU, Accumulator 2.6 Flags 2.7 System Controller 2.8 Interrupt Controller 2.9 Reset Circuit Peripheral Har

Features

4-bit single chip microcomputer.
Instruction execution time: 1.3µs (at 6MHz).
Low voltage operation: 2.2V (at 2MHz RC).
89 basic instructions - Instruction set is the same as TLCS-47 series.
ROM table look-up instructions.
Subroutine nesting: 15 levels max.
5 interrupt sources (External: 2, Internal: 3) - All sources have independent latches each, and multiple interrupt control is available.
I/O port (11 pins).
12.
