20DL2CZ51A Datasheet - ToshibaSemiconductor

20DL2CZ51A, HIGH EFFICIENCY DIODE STACK

20DL2CZ51A,20FL2CZ51A TOSHIBA HIGH EFFICIENCY DIODE STACK (HED) SILICON EPITAXIAL TYPE 20DL2CZ51A, 20FL2CZ51A SWITCHING MODE POWER SUPPLY APPLICATIO.

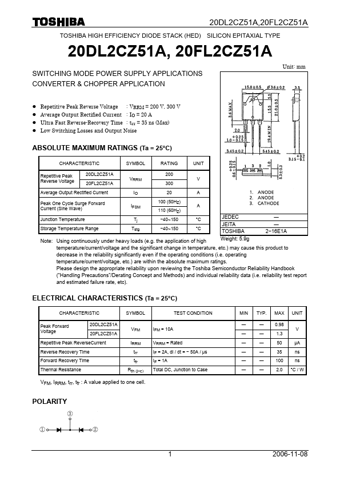

datasheet Preview Page 1 from Datasheet4u.com

20DL2CZ51A_ToshibaSemiconductor.pdf

Preview of 20DL2CZ51A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

20DL2CZ51A

Manufacturer:

Toshiba ↗Semiconductor

File Size:

305.39 KB

Description:

HIGH EFFICIENCY DIODE STACK

Applications

* CONVERTER & CHOPPER APPLICATION Unit: mm z Repetitive Peak Reverse Voltage : VRRM = 200 V, 300 V z Average Output Rectified Current : IO = 20 A z Ultra Fast Reverse-Recovery Time : trr = 35 ns (Max) z Low Switching Losses and Output Noise ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC SYMB
