20GL2C41A HIGH EFFICIENCY DIODE STACK

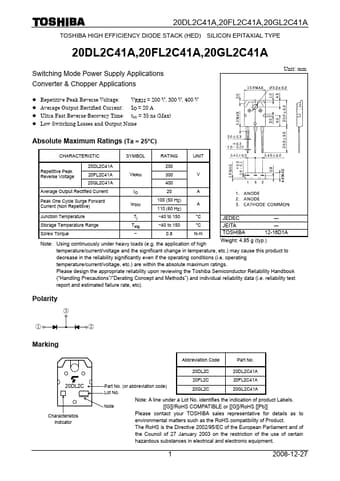

20DL2C41A,20FL2C41A,20GL2C41A TOSHIBA HIGH EFFICIENCY DIODE STACK (HED) SILICON EPITAXIAL TYPE 20DL2C41A,20FL2C41A,20GL2C41A Switching Mode Power Supply Applications Converter & Chopper Applications Unit: mm z Repetitive Peak Reverse Voltage: VRRM = 200 V, 300 V, 400 V z Average Output Rectified Current: IO = 20 A z Ultra Fast Reverse-Recovery Time: trr = 35 ns (Max) z Low Switching Losses and Output Noise Absolute Maximum Ratings (Ta = 25°C) CHARACTERISTIC SYMBOL RATING UNIT 20DL2C41A.
