MAU302, MAU300, 2 Watt Ultra Miniature High Isolation SIP DC/DC Single & Dual Output

TOTAL POWER INT'L MAU300 Series 2 Watt Ultra Miniature High Isolation SIP DC/DC SinCgloen&verDteurasl wOiuthtput Key .

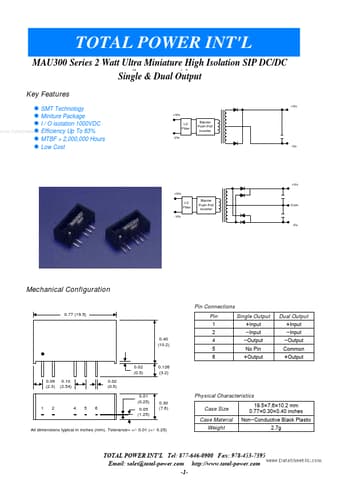

datasheet Preview Page 1 from Datasheet4u.com

MAU300_TotalPowerInternational.pdf

MAU302 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAU302, MAU300. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAU302, MAU300

Manufacturer:

Total Power International

File Size:

194.72 KB

Description:

2 Watt Ultra Miniature High Isolation SIP DC/DC Single & Dual Output

Note:

This datasheet PDF includes multiple part numbers: MAU302, MAU300.
Please refer to the document for exact specifications by model.

Features

* l SMT Technology l Miniture Package l I / O isolation 1000VDC www. DataSheet4lU. cEofmficiency Up To 83% l MTBF > 2,000,000 Hours l Low Cost +Vin LC Filter -Vin Bipolar Push-Pull Inverter +Vo -Vo +Vin LC Filter -Vin Bipolar Push-Pull Inverter +Vo Com. -Vo Mechanical Configuration 0.77 (19.5)

Applications

* + DC Power Source - Fuse +Vin Single Output DC / DC Converter -Vin +Out -Out Load + DC Power Source - Fuse +Vin +Out Dual Output DC / DC Common Converter -Vin -Out Load #1 Load #2 Input Fuse Selection Guide 5V Input Models 1000mA Slow - Blow Type 12V Input Models 500mA Slow - Blow Type
