TS1002 (TS1002 / TS1004) THE ONLY 0.8V/0.6uA RAIL-TO-RAIL DUAL/QUAD OP AMPS

TS1002 Description

TS1002/TS1004 THE ONLY 0.8V/0.6µA RAIL-TO-RAIL DUAL/QUAD OP AMPS .
FEATURES Single 0.

TS1002 Features

* Single 0.65V to 2.5V Operation Supply current: 0.6μA per amplifier (typ) Offset voltage: 0.5mV (typ) Low TCVOS: 10µV/°C (typ) AVOL Driving 100kΩ Load: 90dB (min) Unity Gain Stable Rail-to-rail Input and Output No Output Phase Reversal Packaging: TS1002
* 8-pin MSOP TS1004
* 14-pin TS

TS1002 Applications

* the TS1002 and the TS1004 join Touchstone’s TS1001 operational amplifier in the “NanoWatt Analog™” highperformance analog integrated circuits portfolio. Both op amps exhibit a typical offset voltage of 0.5mV, a typical input bias current of 25pA, and rail-to-rail input and output stages. The TS1002

📥 Download Datasheet

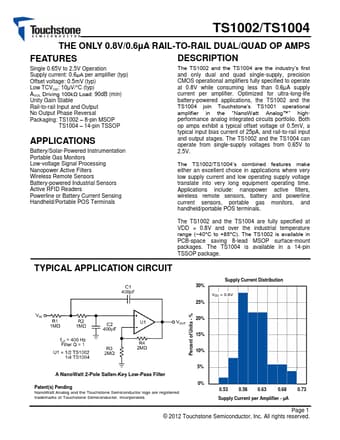

Preview of TS1002 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS1002
Manufacturer
Touchstone Semiconductor
File Size
1.06 MB
Datasheet
TS1002_TouchstoneSemiconductor.pdf
Description
(TS1002 / TS1004) THE ONLY 0.8V/0.6uA RAIL-TO-RAIL DUAL/QUAD OP AMPS
