775-8013F-C-CC DC Motor

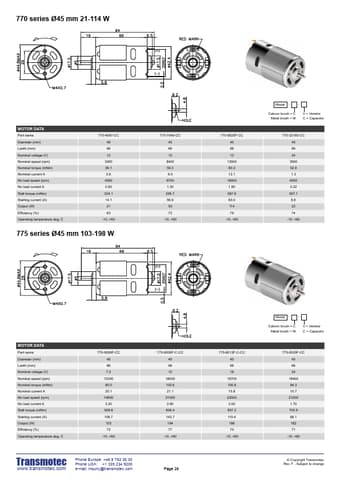

770 series Ø45 mm 21-114 W MODEL NO. DESIGNATIONS MOTOR DATA Part name Diameter (mm) Lenth (mm) Nominal voltage (V) Nominal speed (rpm) Nominal torque (mNm) Nominal current A No load speed (rpm) No load current A Stall torque (mNm) Starting current (A) Output (W) Efficiency (%) Operating temperature deg. C 770-4087-CC 45 66 12 3500 56.1 2.8 4550 0.60 334.1 14.1 21 63 -10..+60 775 series Ø45 mm 103-198 W 770-7040-CC 45 66 12 8400 59.3 6.0 9700 1.30 595.7 56.9 53 73 -10..+60 770-8525F-CC 45 .

775-9008F-CC-Transmotec.pdf

775-8013F-C-CC Datasheet Preview — This datasheet PDF includes multiple part numbers: 775-8013F-C-CC, 775-9008F-CC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

775-8013F-C-CC, 775-9008F-CC

Manufacturer:

Transmotec

File Size:

138.08 KB

Description:

Dc motor.

Note:

This datasheet PDF includes multiple part numbers: 775-8013F-C-CC, 775-9008F-CC.
Please refer to the document for exact specifications by model.
