MD5-2445AS-BB-C, MD5-2554AS-AA-C Datasheet - Transmotec

MD5-2445AS-BB-C DC Motor

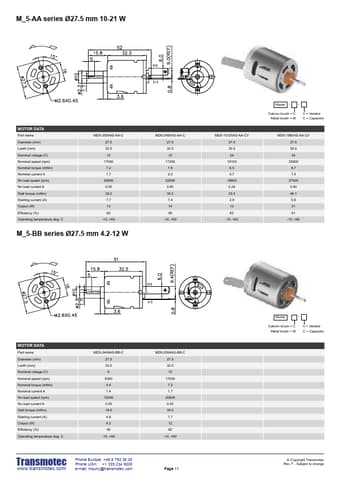

M_5-AA s eries Ø27.5 mm 10-21 W MODEL NO. DESIGNATIONS MOTOR DATA Part name Diameter (mm) Lenth (mm) Nominal voltage (V) Nominal speed (rpm) Nominal torque (mNm) Nominal current A No load speed (rpm) No load current A Stall torque (mNm) Starting current (A) Output (W) Efficiency (%) Operating temperature deg. C MD5-2554AS-AA-C 27.5 32.5 12 17000 7.2 1.7 20800 0.55 39.2 7.7 13 62 -10..+60 M_5-BB series Ø27.5 mm 4.2-12 W MD5-2450AS-AA-C 27.5 32.5 12 17200 7.6 2.0 22000 0.60 35.3 7.4 14 56 -.

MD5-2554AS-AA-C-Transmotec.pdf

This datasheet PDF includes multiple part numbers: MD5-2445AS-BB-C, MD5-2554AS-AA-C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MD5-2445AS-BB-C, MD5-2554AS-AA-C

Manufacturer:

Transmotec

File Size:

130.88 KB

Description:

Dc motor.

Note:

This datasheet PDF includes multiple part numbers: MD5-2445AS-BB-C, MD5-2554AS-AA-C.
Please refer to the document for exact specifications by model.
