ND3SFN-4565-CVC Datasheet - Transmotec

ND3SFN-4565-CVC DC Motor

N_3SFN series Ø38 mm 19-95 W MODEL NO. DESIGNATIONS MOTOR DATA Part name Diameter (mm) Lenth (mm) Nominal voltage (V) Nominal speed (rpm) Nominal torque (mNm) Nominal current A No load speed (rpm) No load current A Stall torque (mNm) Starting current (A) Output (W) Efficiency (%) Operating temperature deg. C ND3SFN-4570-CVC 38 65 12 5400 33.5 2.2 6200 0.30 297.5 17.0 19 74 -10..+60 N_5FN series Ø38 mm 46-95 W ND3SFN-4565-CVC 38 65 12 5800 36.0 2.6 6700 0.50 287.0 17.9 22 71 -10..+60 NC3SFN.

ND3SFN-4565-CVC Datasheet (135.17 KB)

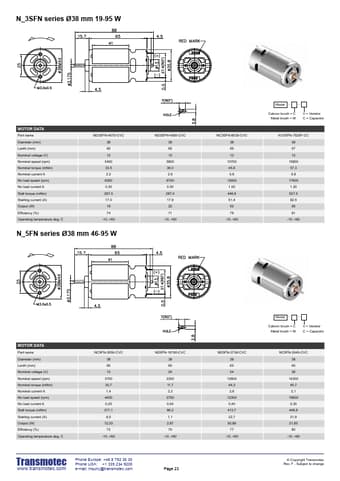

Preview of ND3SFN-4565-CVC PDF

Datasheet Details

Part number:

ND3SFN-4565-CVC

Manufacturer:

Transmotec

File Size:

135.17 KB

Description:

Dc motor.
