MCR100-6 - TO-92 Plastic-Encapsulated Transistors

Datasheet Summary

Features

2. GATE Current-IGT: ITRMS: VDRM: 200 0.8 MCR100-6: MCR100-8: µA A 400 V 600 V Operating and storage junction temperature range TJ, Tstg: -55℃ to +150℃ 3. ANODE.

Transys

📥 Download Datasheet

Datasheet Details

Part number	MCR100-6
Manufacturer	Transys
File Size	125.05 KB
Description	TO-92 Plastic-Encapsulated Transistors
Datasheet	MCR100-6 Datasheet
Additional preview pages of the MCR100-6 datasheet.

📁 Similar Datasheet

MCR100-6 - Silicon Controlled Rectifier (SemiHow)
MCR100-6 - Silicon Controlled Rectifiers (Motorola)
MCR100-6 - SCR (Semtech)
MCR100-6 - Sensitive Gate Silicon Controlled Rectifiers (ON Semiconductor)
MCR100-6 - Thyristors (Inchange Semiconductor)
MCR100-6 - Thyristors (Weitron)
MCR100-6 - Silicon Planar PNPN Thyristor (WEJ)
MCR100-6 - Small Signal Diode (Taiwan Semiconductor)
MCR100-6 - SENSITIVE GATE SILICON CONTROLLED RECTIFIERS (CDIL)
MCR100-6 - Silicon Controlled Rectifier (Kexin)

Other Datasheets by Transys

MCR100-6 - Silicon Controlled Rectifier
MCR100-3 - Silicon Controlled Rectifier
MCR100-4 - Silicon Controlled Rectifier
MCR100-8 - TO-92 Plastic-Encapsulated Transistors
MCR100-8 - Silicon Controlled Rectifier

Full PDF Text Transcription

Click to expand full text

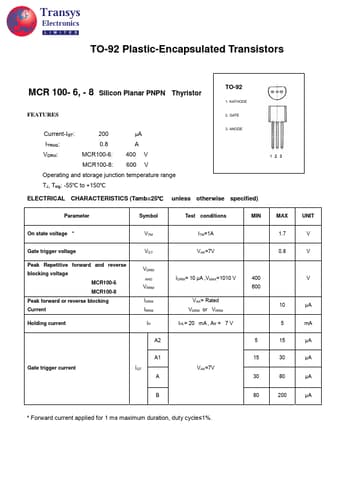

Transys Electronics LIMITED TO-92 Plastic-Encapsulated Transistors MCR 100- 6, - 8 Silicon Planar PNPN Thyristor TO-92 1. KATHODE FEATURES 2. GATE Current-IGT: ITRMS: VDRM: 200 0.8 MCR100-6: MCR100-8: µA A 400 V 600 V Operating and storage junction temperature range TJ, Tstg: -55℃ to +150℃ 3. ANODE ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) 123 Parameter Symbol Test conditions MIN MAX On state voltage * VTM ITM=1A 1.7 Gate trigger voltage Peak Repetitive forward and reverse blocking voltage MCR100-6 MCR100-8 Peak forward or reverse blocking Current Holding current VGT VDRM AND VRRM IDRM IRRM IH VAK=7V 0.
