| Part number | V162X-15-2.5, V162X |
|---|---|
| Manufacturer | Trend |
| File Size | 351.96 KB |

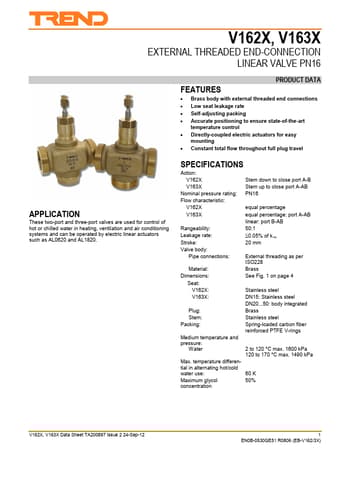

| Description | EXTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 |
| Datasheet |
 V162X-Trend.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: V162X-15-2.5, V162X. Please refer to the document for exact specifications by model. |
internal thread consisting of 1 union nut, 1 tailpiece, and 1 gasket dimensions of connection sets a G 1-1/8" G 1-1/4" G 1-1/2” G 2” G 2-1/4” G 2-3/4" c G 1/2" G 3/4" G 1" G 1-1/4" G 1-1/2" G 2" order number ACCV-TC-15 ACCV-TC-20 ACCV-TC-25 ACCV-TC-32 ACCV-TC-40 ACCV-TC-50 V162X, V163X Data Sheet TA200897 Issue 2 24-Sep-12 EN0B-0530GE51 R0806 (EB-V162/3X) 3 V162X, V163X Data Sheet Table 3. Dimensions (in mm) valve size DN15 DN20 DN25 DN32 DN40 DN50 A 80 90 110 120 130 150 B 40 40 40 40
