V163X-15-2.5 Datasheet - Trend

EXTERNAL THREADED END-CONNECTION LINEAR VALVE PN16

V163X-15-2.5 Features

* V162X, V163X PRODUCT DATA Brass body with external threaded end connections Low seat leakage rate Self-adjusting packing Accurate positioning to ensure state-of-the-art temperature control Directly-coupled electric actuators for easy mou

V163X-15-2.5 General Description

internal thread consisting of 1 union nut, 1 tailpiece, and 1 gasket dimensions of connection sets a G 1-1/8" G 1-1/4" G 1-1/2” G 2” G 2-1/4” G 2-3/4" c G 1/2" G 3/4" G 1" G 1-1/4" G 1-1/2" G 2" order number ACCV-TC-15 ACCV-TC-20 ACCV-TC-25 ACCV-TC-32 ACCV-TC-40 ACCV-TC-50 V162X, V163X Data Sh.

V163X-15-2.5 Datasheet (351.96 KB)

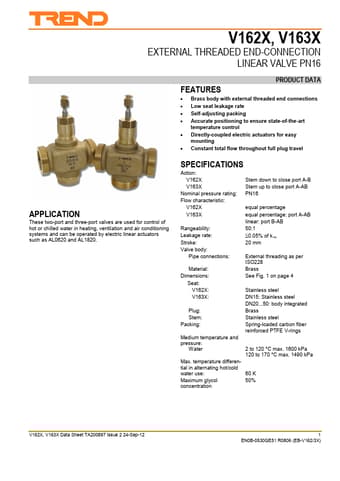

Preview of V163X-15-2.5 PDF

Datasheet Details

Part number:

V163X-15-2.5

Manufacturer:

Trend

File Size:

351.96 KB

Description:

External threaded end-connection linear valve pn16.
