TGP2108-SM

Digital Phase Shifter

TGP2108-SM Features

* Functional Block Diagram

* Frequency Range: 2.5 to 4 GHz

* 6-Bit Digital Phase Shifter

* Bi-Directional

* 360°Coverage, LSB = 5.625°

* RMS Phase Error: < 2°(2.7

* 3.7 GHz) < 5°(other frequencies)

* RMS Amplitude Error: < 0.4 dB

* Inse

TGP2108-SM General Description

The Qorvo TGP2108-SM is a packaged 6-bit digital phase shifter fabricated on Qorvo’s high performance 0.15 um GaAs pHEMT process. It operates over 2.5-4 GHz while providing 360 of phase coverage with a LSB of 5.625. The TGP2108-SM offers an exceptional RMS phase error of <20 and amplitude error of <.

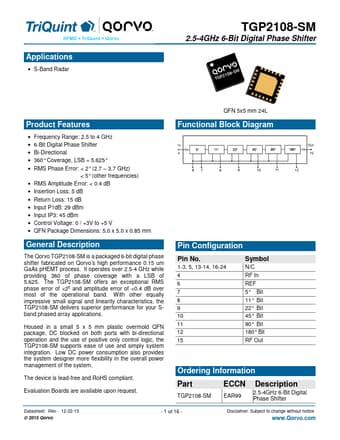

TGP2108-SM Datasheet (1.39 MB)

Preview of TGP2108-SM PDF

Datasheet Details

Part number:

TGP2108-SM

Manufacturer:

TriQuint Semiconductor

File Size:

1.39 MB

Description:

Digital phase shifter.
