CFH800 Datasheet - TriQuint

High-Linearity Packaged pHEMT FET

CFH800 Features

* Low Noise figure and high associated gain for high IP3 receiver stages up to 4 GHz

* NF = 0.50dB; Ga = 17 dB @ 3V, 30 mA f = 1.8 GHz

* Low cost miniature package SC70

* LG = 0.4µm; WG = 800µm Applications

* PCS CDMA and UMTS Receivers

* WLAN Multicar

CFH800 General Description

The CFH800 is a high-linearity pHEMT FET that exhibits both a high intercept point and low noise figure. The device is suitable for front-end applications up to 4 GHz such as PCS CDMA and UMTS receivers, base stations LNAs, and WLAN front-ends. The device achieves a noise figure as low as 0.50 dB wi.

CFH800 Datasheet (342.24 KB)

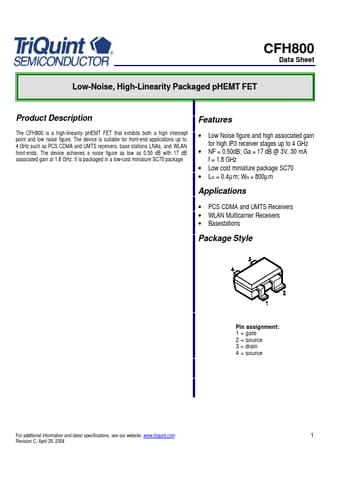

CFH800 Datasheet Preview — Preview of CFH800 PDF

Datasheet Details

Part number:

CFH800

Manufacturer:

TriQuint

File Size:

342.24 KB

Description:

High-linearity packaged phemt fet.
