TA1001 Datasheet - Triad RF Systems

TA1001 - PA Module

DC Supply TTL ON/OFF * Value +28 VDC +5V = On / 0V = Off * Mechanical Outline Triad RF Systems Inc.

| 6 Lisa Court Millstone Township NJ 08510 | Tel: 732 310 9918 sales@triadrf.com rev 0.5.12 Free Datasheet http://www.datasheet4u.com/ TA1001 PA Module * 8.0 Watt 30 MHz

TA1001 PA Module 8.0 Watt 30 MHz 3000 MHz This Class AB, GaN amplifier module is ideal for a variety of needs due to its extremely wide frequency band of operation.

It will work with any radio system and modulation for data and video links.

This amplifier offers high linear transmit power with superior EVM performance and efficiency, while also providing a low-noise front end to maintain the highest data rate possible.

One of the smallest in the industry, its rugged construct

TA1001_TriadRFSystems.pdf

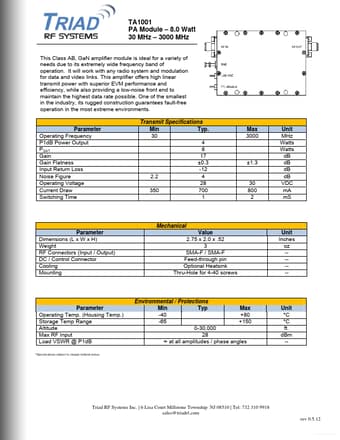

Preview of TA1001 PDF
TA1001 Datasheet Preview Page 2 TA1001 Datasheet Preview Page 3

Datasheet Details

Part number:

TA1001

Manufacturer:

Triad RF Systems

File Size:

227.54 KB

Description:

Pa module.
