RB-TK2019 Datasheet - Tripatr

RB-TK2019 2 X 20W CLASS-T DIGITAL AUDIO AMPLIFIER REFERENCE BOARD

The RB-TK2019 Revision 2.1 is a stereo single ended 20W continuous average power per channel audio amplifier designed to provide a simple and straightforward environment for the evaluation of the TK2019 as a single ended amplifier. For additional documentation on the TK2019, see the TK2019 Data Shee.

RB-TK2019 Features

* High Continuous Power: 20W @ 4Ω, 10% THD+N 11W @ 8Ω, 10% THD+N Low Noise Floor: 82uV A-weighted Low Distortion: .03% THD+N, 11W, 4Ω .03% THD+N, 6W, 8Ω High Efficiency: 89% @ 20W, 4Ω 92% @ 11W, 8Ω Dynamic Range >100dB BENEFITS Single Supply Operation Very High Efficiency Wide Dynamic Range Compact L

RB-TK2019 Datasheet (435.76 KB)

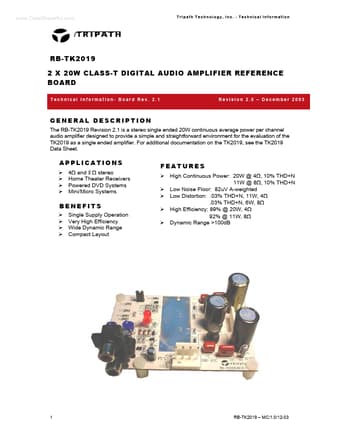

Preview of RB-TK2019 PDF
RB-TK2019 Datasheet Preview Page 2 RB-TK2019 Datasheet Preview Page 3

Datasheet Details

Part number:

RB-TK2019

Manufacturer:

Tripatr

File Size:

435.76 KB

Description:

2 x 20w class-t digital audio amplifier reference board.
