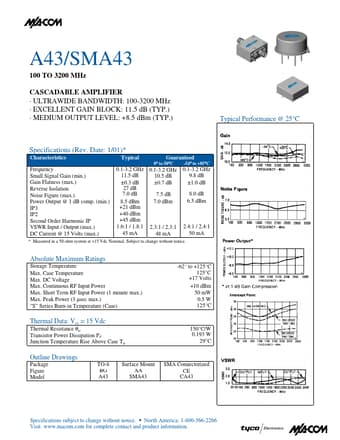

A43/SMA43 100 TO 3200 MHz CASCADABLE AMPLIFIER · ULTRAWIDE BANDWIDTH: 100-3200 MHz · EXCELLENT GAIN BLOCK: 11.5 dB (TYP.) · MEDIUM OUTPUT LEVEL: +8.5 dBm (TYP.) Typical Performance @ 25°C Specifications (Rev. Date: 1/01)* Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Guaranteed -54° to +85°C 0.1-3.2 GHz 11.5 dB ±0.3 dB 27 dB 7.0 dB 8.5 dBm +21 dBm +40 dBm +45 dBm 1.6:1 / 1.8:1 45 mA 0.1-3.2 GHz 10.5 dB ±0.7 dB 7.5 dB 7.0 dBm 0.1-3.2 GHz 9.8 dB ±1.0 dB 8.0 dB 6.5 dBm 2.3:1 / 2.3:1 48 mA 2.4:1 / 2.4:1 50 mA * Measured in a 50-ohm system at +15 Vdc Nominal.
