A513 Datasheet - Tyco Electronics

A513 10 TO 500 MHz TO-8 CASCADABLE AMPLIFIER

A513/SMA513 10 TO 500 MHz TO-8 CASCADABLE AMPLIFIER HIGH LINEARITY IP3: +30 dBm (TYP.) IP2: +50 dBm (TYP.) HIGH GAIN: 20 dB (TYP.) LOW VSWR: 1.4:1 (TYP.) Specifications (Rev. Date: 2/02) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 12 Volts (max.) Typical 0° to 50°C Typical Performance @ 25°C Guaranteed.

A513_TycoElectronics.pdf

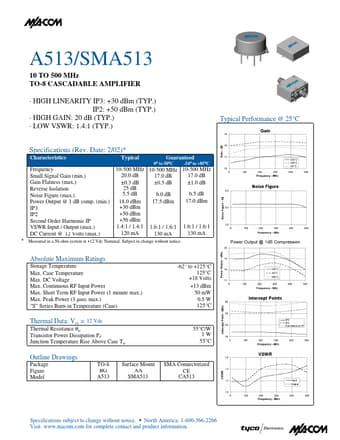

Preview of A513 PDF

Datasheet Details

Part number:

A513

Manufacturer:

Tyco Electronics

File Size:

98.06 KB

Description:

10 to 500 mhz to-8 cascadable amplifier.
