A58 - 5 TO 500 MHz CASCADABLE AMPLIFIER

Tyco Electronics

Datasheet Details

Part number	A58
Manufacturer	Tyco Electronics
File Size	110.37 KB
Description	5 TO 500 MHz CASCADABLE AMPLIFIER
Datasheet	A58 Datasheet
Additional preview pages of the A58 datasheet.

📁 Similar Datasheet

A5800 - BiMOS II Latched Drivers (Allegro)
A5801 - BiMOS II Latched Drivers (Allegro)
A5817SEP - ADDRESSABLE 28-LINE DECODER/DRIVER (Allegro MicroSystems)
A5821 - BiMOS II 8-Bit Serial Input Latched Driver (Allegro MicroSystems)
A5832 - BiMOS II 32-Bit Serial Input Latched Driver (Allegro MicroSystems)
A5833 - BiMOS II 32-Bit Serial Input Latched Driver (Allegro)
A5841 - BiMOS II 8-Bit Serial Input Latched Driver (Allegro MicroSystems)
A5841SLW - BiMOS II 8-Bit Serial Input Latched Driver (Allegro MicroSystems)
A5842SLW - BiMOS II 8-BIT SERIAL-INPUT/ LATCHED DRIVERS (Allegro MicroSystems)
A5869 - DVD BTL (ETC)

Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text

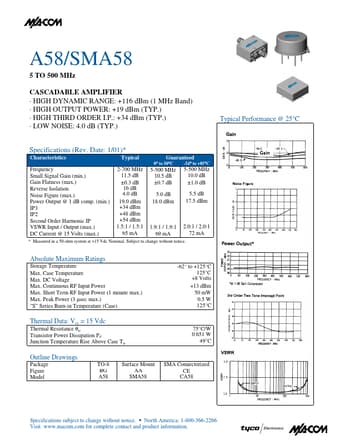

A58/SMA58 5 TO 500 MHz CASCADABLE AMPLIFIER · HIGH DYNAMIC RANGE: +116 dBm (1 MHz Band) · HIGH OUTPUT POWER: +19 dBm (TYP.) · HIGH THIRD ORDER I.P.: +34 dBm (TYP.) · LOW NOISE: 4.0 dB (TYP.) Specifications (Rev. Date: 1/01)* Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Typical Performance @ 25°C Guaranteed -54° to +85°C 2-700 MHz 11.5 dB ±0.3 dB 16 dB 4.0 dB 19.0 dBm +34 dBm +48 dBm +54 dBm 1.5:1 / 1.5:1 65 mA 5-500 MHz 10.5 dB ±0.7 dB 5.0 dB 18.0 dBm 5-500 MHz 10.0 dB ±1.0 dB 5.5 dB 17.5 dBm 1.9:1 / 1.9:1 69 mA 2.0:1 / 2.
